WHAT IS FIRETIGHT?
A FIRESTOP DESIGNED TO LAST
FIRETIGHT® by Alert is a patented product to seal joints in building constructions, ensuring they are both fireproof and airtight.
FIRETIGHT® is a vacuum-sealed, high-density mineral wool and comes in a red PE film. FIRETIGHT® contains intumescent layers to assemble the strokes in a fireproof manner and to any desired length.
For ventilated façade systems we recommend using the FIRETIGHT FUSE – our open state cavity barrier.
FIRE RESISTANCE OF
MORE THAN 3 HOURS
FIRETIGHT®:
- has an extremely high fire resistance (3+ hours)
- can be precisely dimensioned in advance and can be inspected afterwards
- is airtight (class 2)

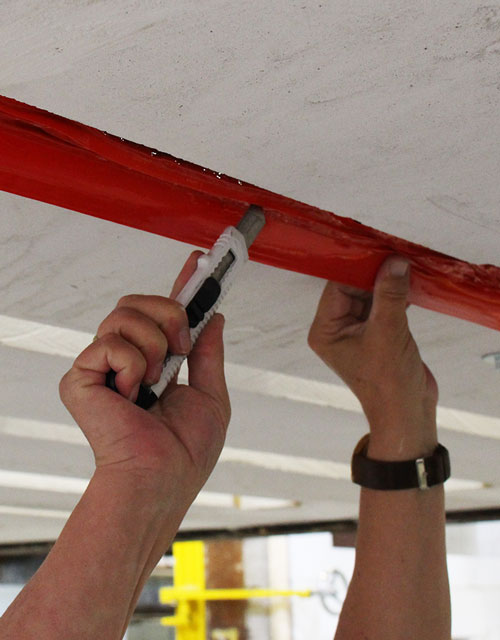

- can be quickly and easily installed without the need
for additional fasteners - insulates (lambda 0.034 W/m.K)
- follow movements of expansion, shrinkage or wind
load on the joint - does not stick and can be removed easily after
demolition - does not rot and is very durable
FIRETIGHT®
APPLICATIONS
FIRETIGHT® is a passive fire protection product to seal linear gaps in a fireproof manner. With FIRETIGHT®, fire compartments are sealed fireproof, preventing any potential fire from spreading to adjacent compartments. FIRETIGHT® is used (as a firestop) in buildings where all floor, wall and facade connections must withstand fire for a long time, such as high-rise buildings, hospitals, public buildings, etc.

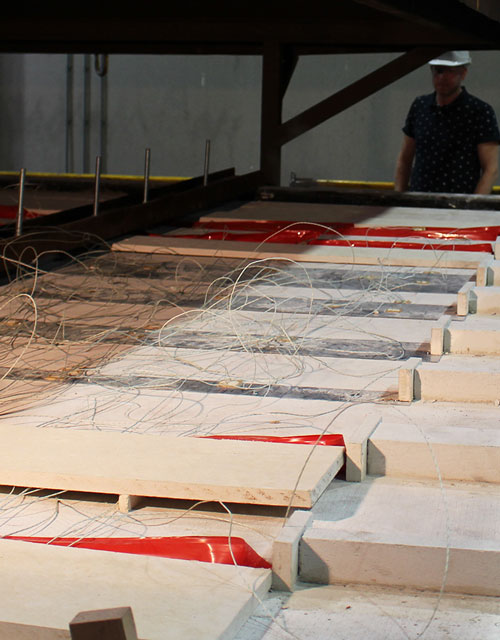

Tested by
Efectis Nederland BV
Tested according to
EN 1366-4:2006 + A1:2010
For resistance fire tests for service installations, Part 4: linear joint seals.
For resistance fire tests for service installations, Part 4: linear joint seals.
EN 13501-1:2007+A1:2009
40-160mm: EI120-H-w40 to w160 / E180-H-w40 to w160
40-160mm (steel plate): EI180-H-w40 to w160 / E240-H-w40 to w160
40-160mm (steel plate): EI180-H-w40 to w160 / E240-H-w40 to w160
FIRETIGHT® specifications
Fire resistance
| FIRE RESISTANCE | DOUBLE FIRETIGHT® (WITH STEEL PLATE) |
|---|---|
| 240 min | 40 mm |
| 240 min | 90 mm |
| FIRE RESISTANCE | DOUBLE FIRETIGHT® (WITH STEEL PLATE) |
| 180 min | 100 mm |
| 180 min | 160 mm |
FIRETIGHT® specifications
| CHARACTERISTICS | DESCRIPTION |
|---|---|
| Length | Standard 1200 mm |
| Width | 200 mm |
| Thickness | 1,5x application width |
| Weight | 1 – 4 kg / m1 |
| Density | Minimum of 105 kg/m3 in application |
| Fire resistance | 2 – 4 hours |
